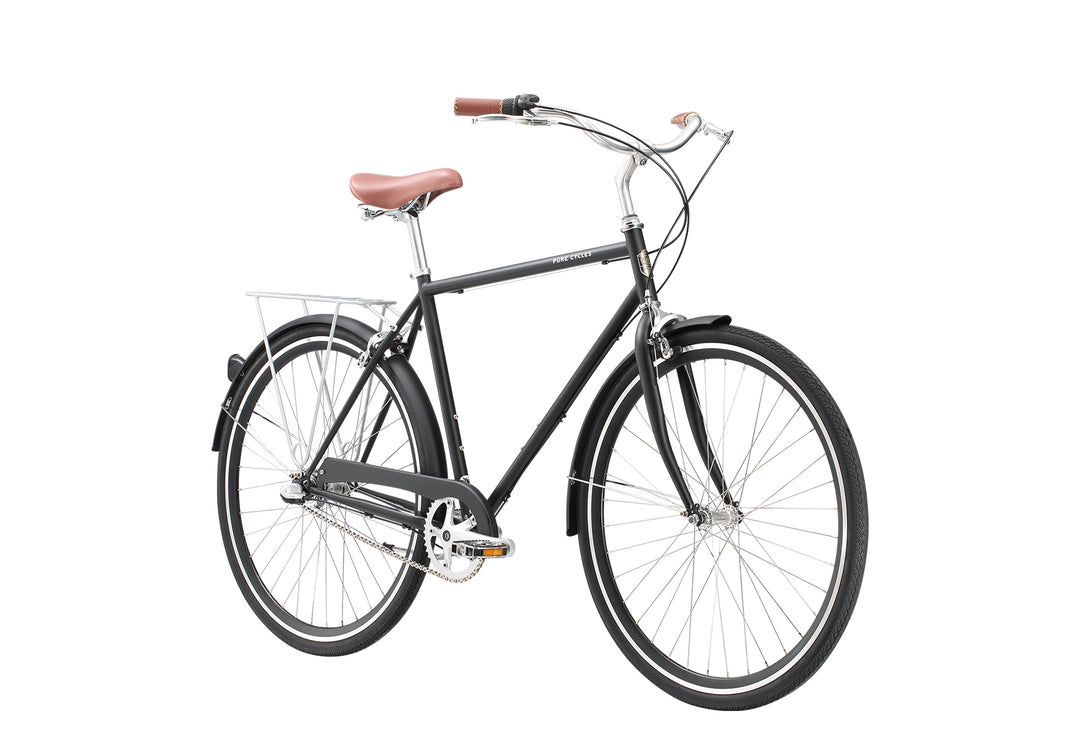

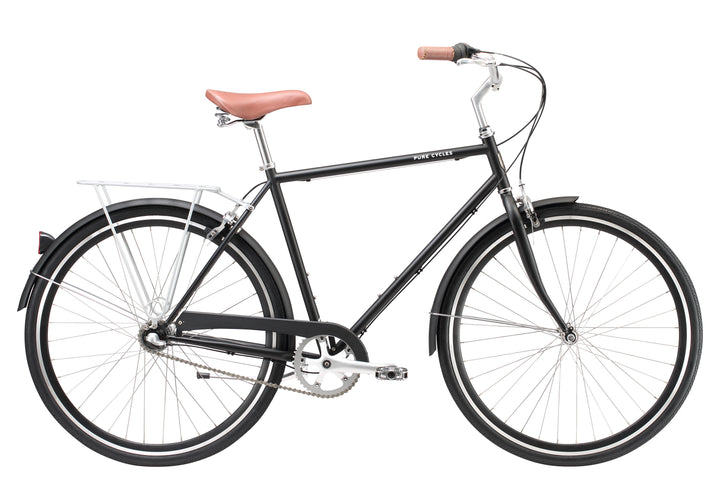

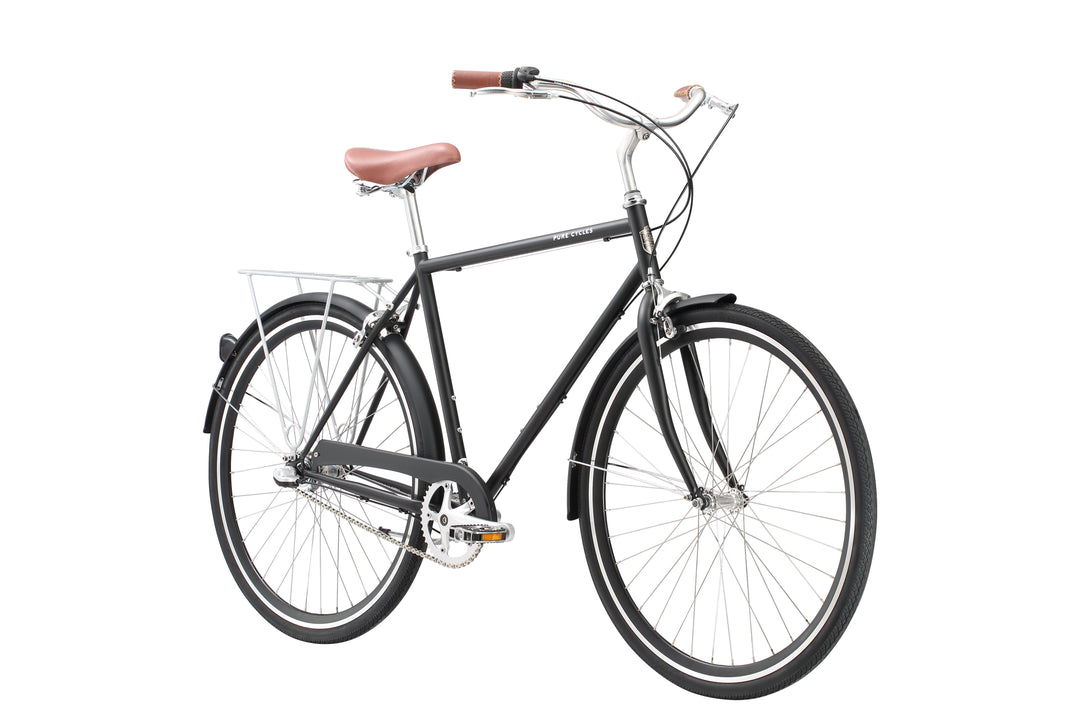

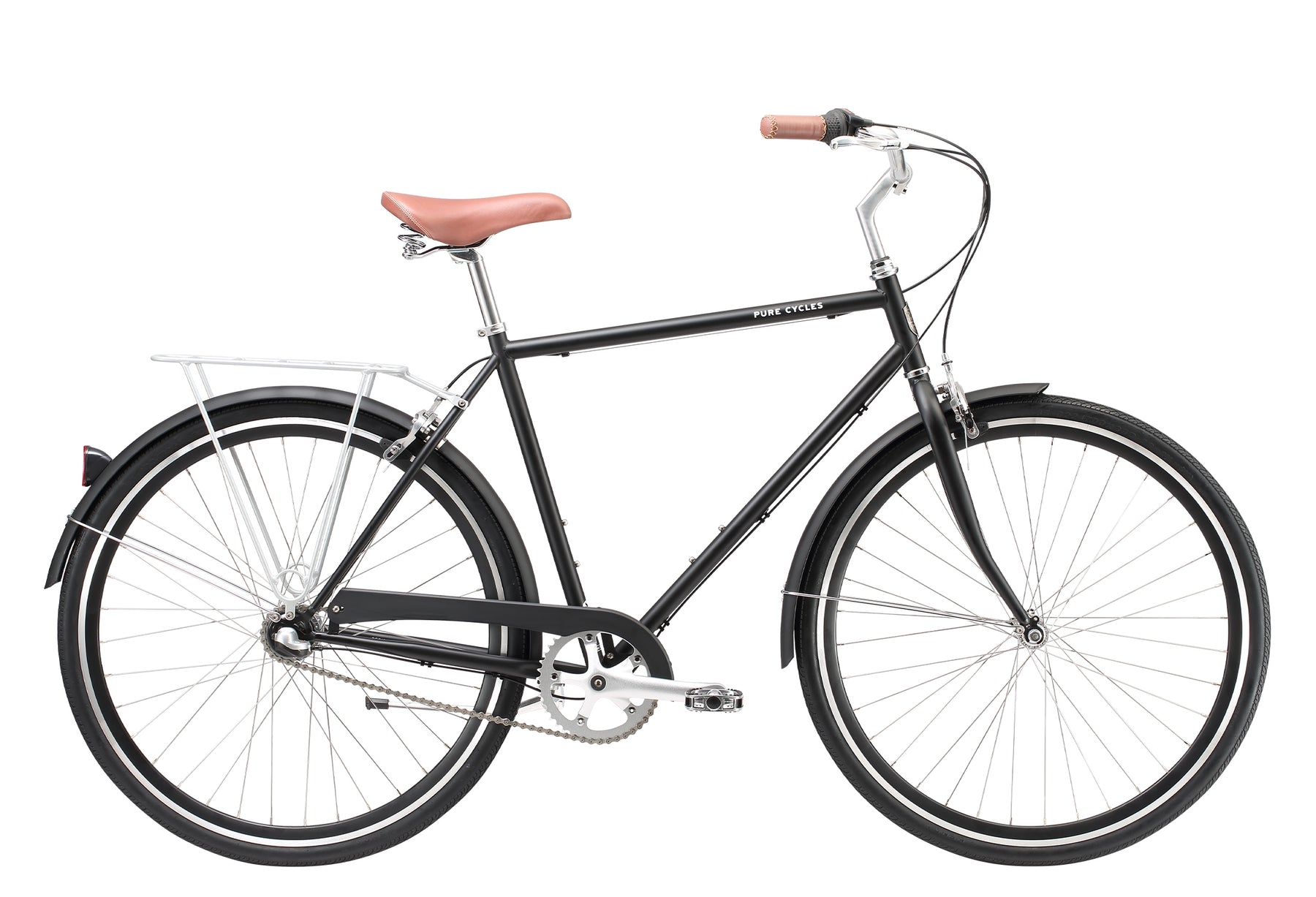

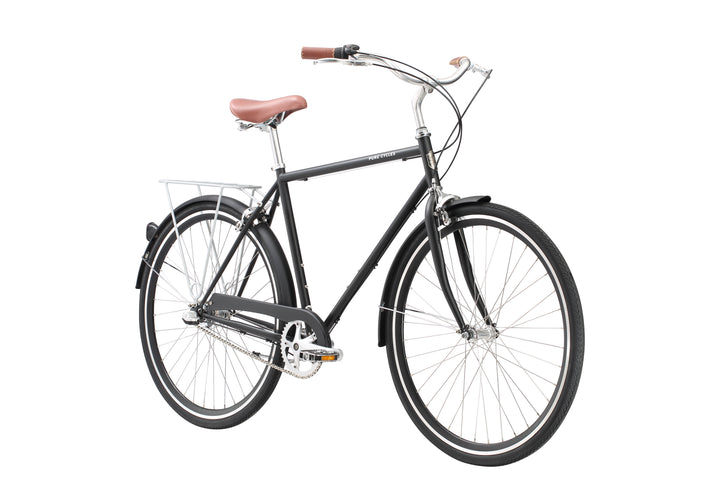

City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed
City Classic 3-Speed

City Classic 3-Speed

Regular price
/

Color
Size
Speed
  • In stock, ready to ship
  • Backordered, shipping soon
  • Custom tig-welded high-tensile steel frame
  • Stylish upright feel with riser style bars
  • Fast-rolling 700c x 35mm tires
  • Durable internally geared 3-speed shifting
  • Powerful dual-pivot brakes front and rear
  • Smooth city cruising with a vintage flair
  • Includes rear rack and fenders
  • Available in 43cm (with 26" wheels,) 45cm, 50cm, 54cm, and 58cm sizes (with 700c wheels)

Frameset

Frame High-Tensile Steel, TIG-Welded
Fork 1" High-Tensile Steel, Curved Legs, Double Eyelets

Drivetrain

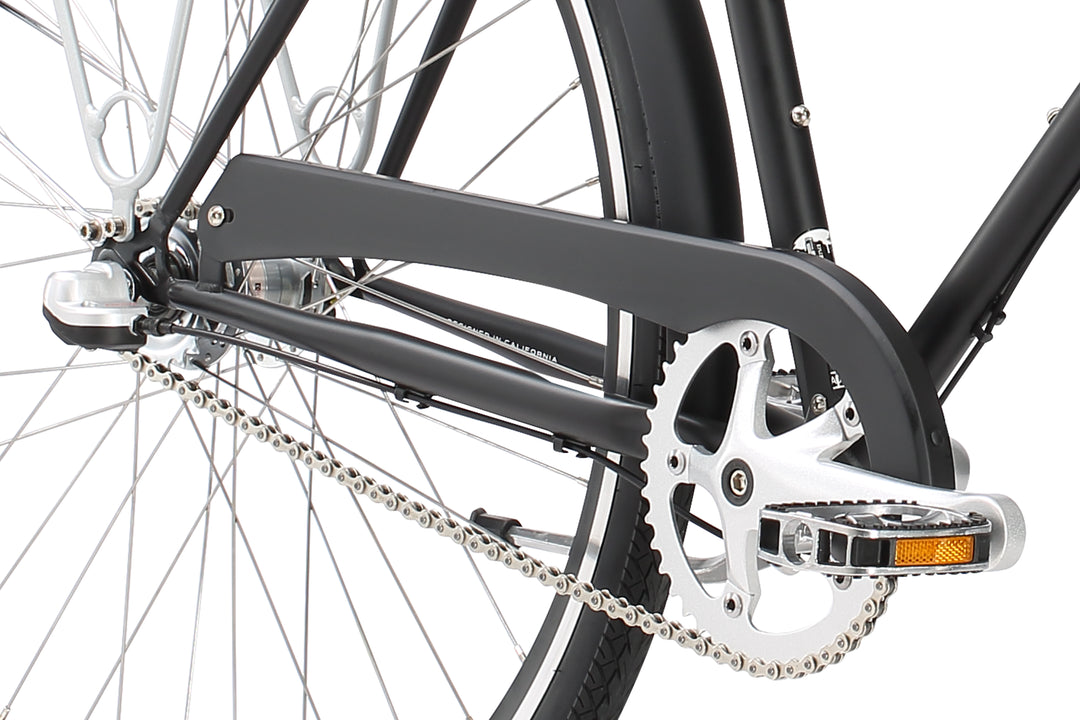

Crankset 3-Piece Alloy, 170mm for 43-54cm Frames, 175mm for 58cm Frames
Chainring Steel, 44T x 1/2'' x 1/8''
Bottom Bracket Sealed Cartridge, 68 x 110.5mm
Sprocket 20T x 1/2" x 1/8"
Chain K.M.C. B1H Wide, 1/2" x 1/8", 104 Links
Rear Shifter Shimano 3-Speed Revo Twist Shifter
Pedals Alloy, 9/16"

Brakes

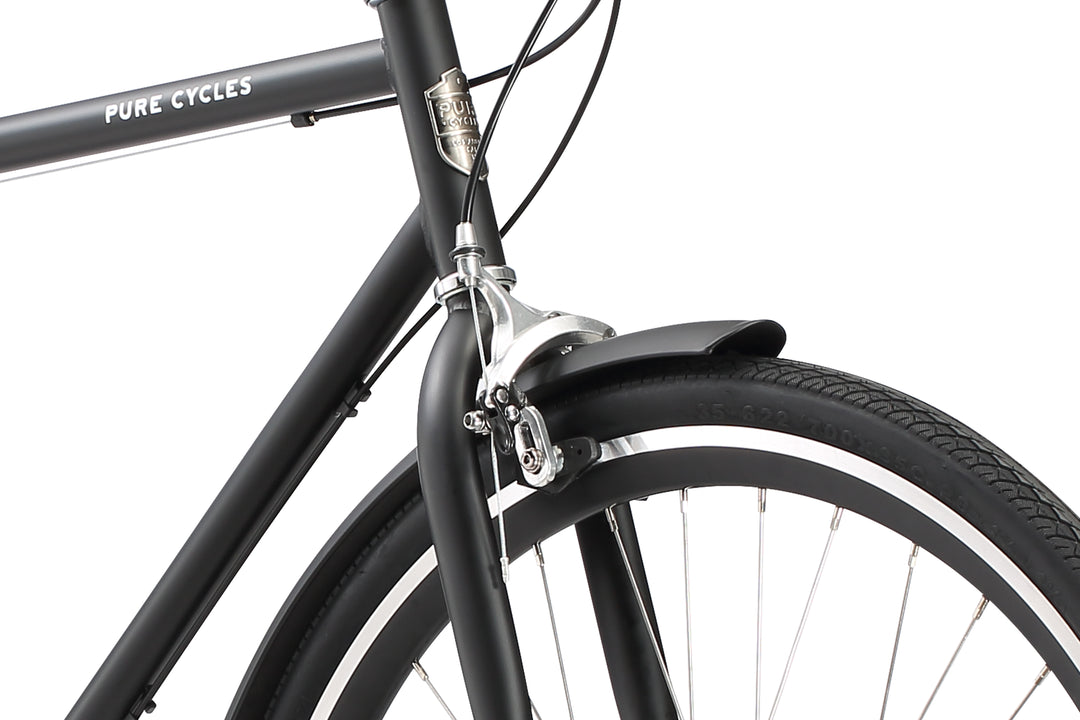

Front Brake Alloy, 55-75mm Reach, Dual Pivot
Rear Brake Alloy, 55-75mm Reach, Dual Pivot
Brake Lever Alloy, 4-Finger Lever

Components

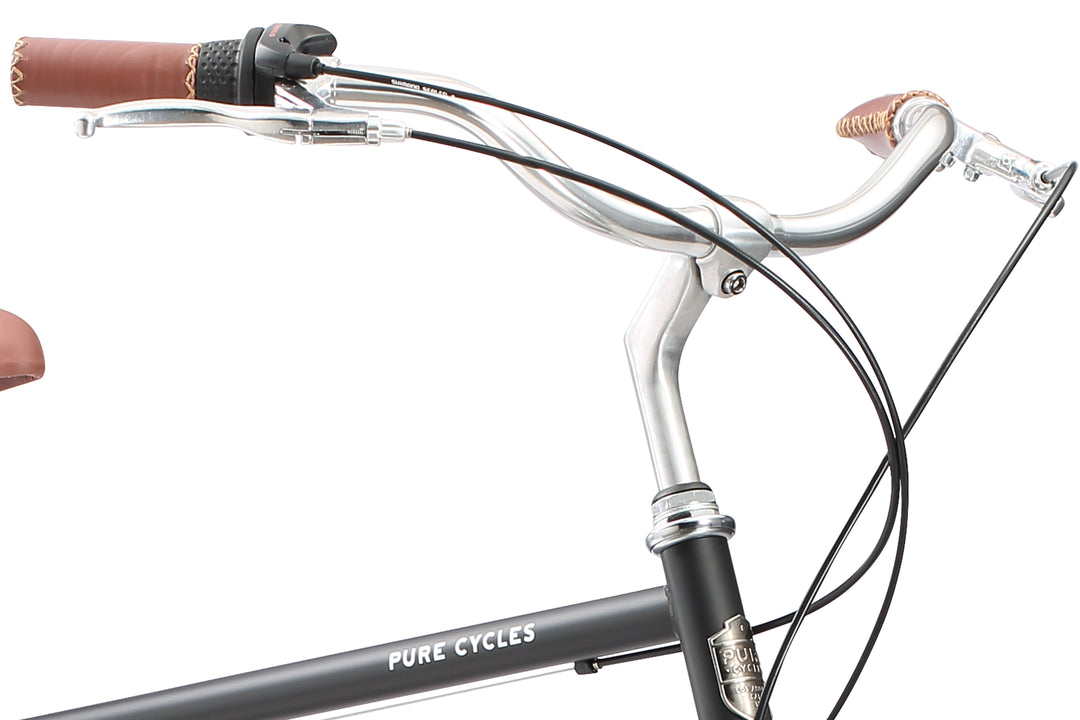

Handlebar Alloy, 580mm Wide x 75mm Rise x 33Deg Bend
Stem Alloy, 22.2 x 180mm Quill x 80mm Ext. x 25.4 Clamp
Headset Steel, Caged Bearings, 22.2 x 30 x 27mm
Grips Kraton Rubber, 130mm Left / 92mm Right

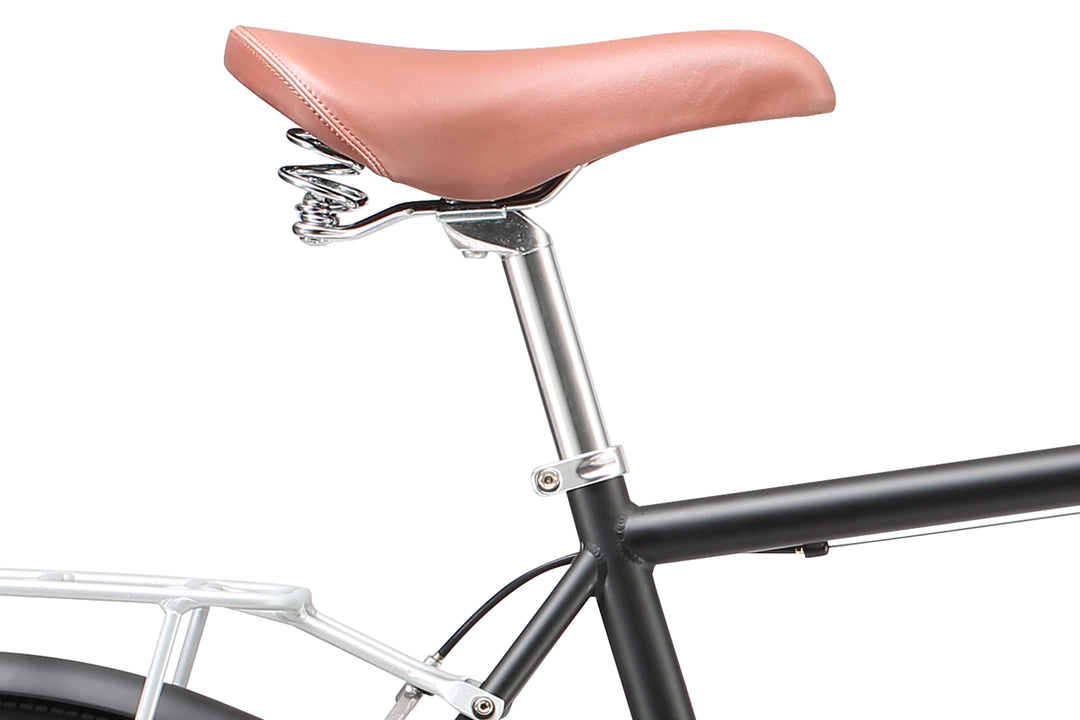

Saddle Pure Cycles Classic, Coil Spring with Chrome Rails
Seat Post Alloy W/Integrated Clamp, 25.4 x 300mm
Seat Clamp Alloy, 28.6mm I.D., with Bolt

Wheels

Front Wheel 700C x 36H x 14G, Alloy-Commuter, Bolt-On
Rear Wheel 700C x 36H x 14G, Alloy-Commuter, W/Nexus-3
Front Hub Alloy, 36H x 14G x 3/8" Bolt-On Axle
Rear Hub Shimano Nexus 3 Internal Hub, 36H x 14G
Spokes 14G Stainless Steel with CP Brass Nipples (F-280 / R-273 / N-16mm)
Rims 700c x 36H x 14G, Alloy, Double Wall
Tires Kenda Kwick 700c x 35mm, Black Wall
Tubes 700c x 35mm, Schrader Valve (48mm)

Included Extras

Fender Set Steel, F&R, W/Single Struts, Painted

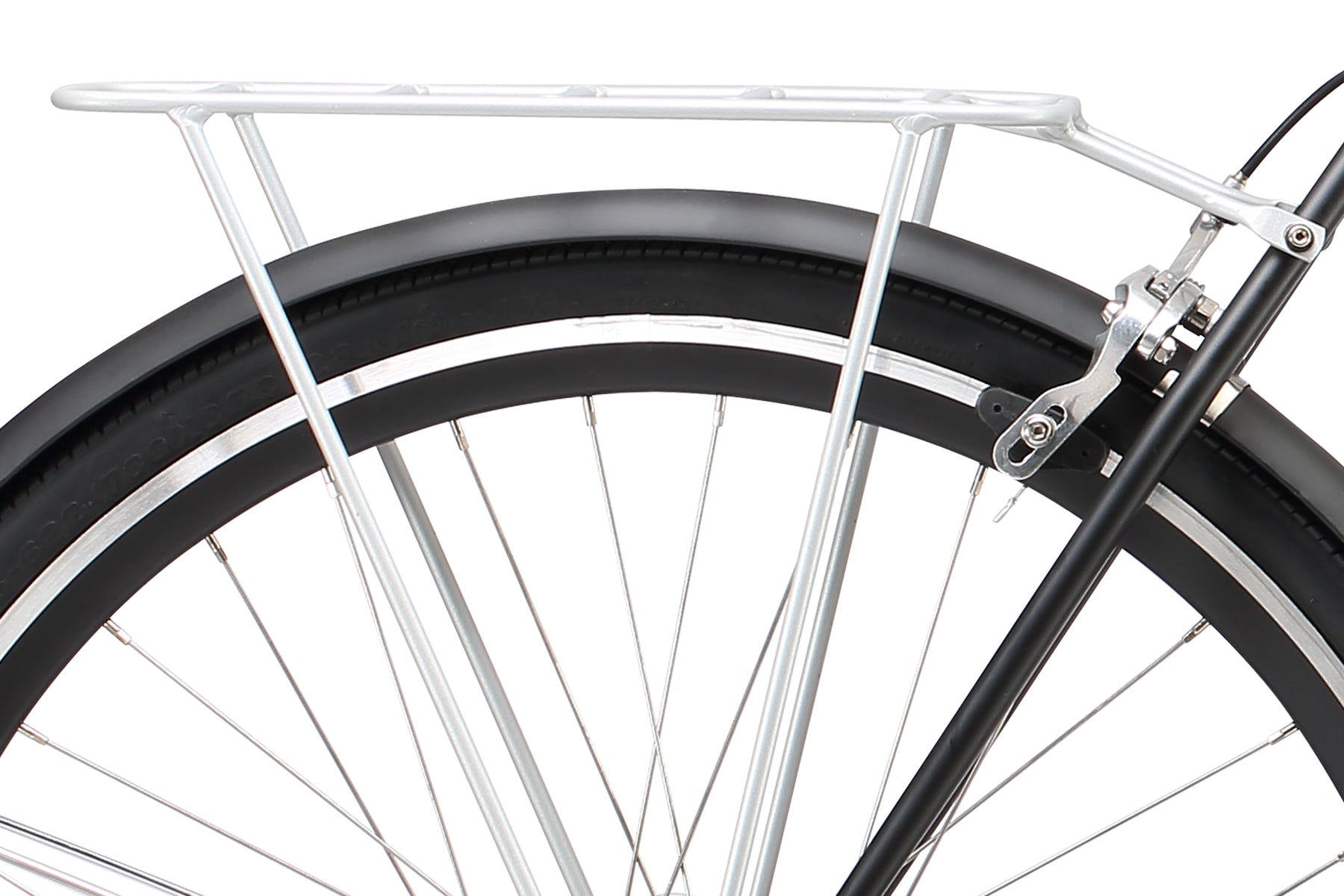

Rear Rack Custom Alloy
Accessory Bell, Steel, Chrome Plated

Weight

Weight Limit 250 Lbs.

Notes

Pricing & Specifications We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.

Geometry
Geometry

Frame Size 43 cm Step-thru 45 cm Step-Thru 50 cm Step-Over 54 cm Step-Over 58 cm Step-Over
Seat Tube, Center To Top A 43 45 50 54 58
Top Tube, Effective B 54 55.8 58.2 59.5 62.2
Head Tube C 18.8 20 12 14 16
Seat Tube Angle D 72.5° 71.6° 73.5° 73.5° 73.5°
Head Tube Angle E 72.5° 69.1° 71.5° 71.5° 71.5°
Chainstay F 44.2 45.7 45.5 45.5 45.5
Wheelbase G 103.8 110.8 107.8 109.3 111.9
Bottom Bracket Drop H 5.5 68.8 6.8 6.8 6.8
Fork Offset I 4.5 6.0 4.5 4.5 4.5
Axle To Crown K 38 41.2 41.3 41.3 41.3
Stack L 60.4
Reach M 59.5
Step-Thru / Standover N 18.5" 19.5" 29" 30" 32"
Minimum Saddle To Ground 31" 33"
Minimum Saddle To Pedal 27.4" 28.2" 30.2" 31.8" 33.3"
Maximum Saddle To Pedal 33.9" 34.7" 36.7" 38.3" 39.8"
Suggested Rider Height 4'10" - 5'6" 5'1" - 5'9" 5'4" - 5'8" 5'7" - 5'11" 5'10" - 6'3"
Wheel Size 26" 700 c 700 c 700 c 700 c
Crank Length 170 mm 170 mm 170 mm 170 mm 170 mm
Stem Length 80 mm 80 mm 80 mm 80 mm 80 mm
Handlebar Width 60 cm 60 cm 60 cm 60 cm 60 cm
